Wind Turbine Installation Platform / Wind Turbine Installation Vessel (WTIV)
Product Information Quick View
· Equipment condition
brand new
· Customizable Situation
yes
· Price range
negotiable
· Primary application field
offshore engineering
description

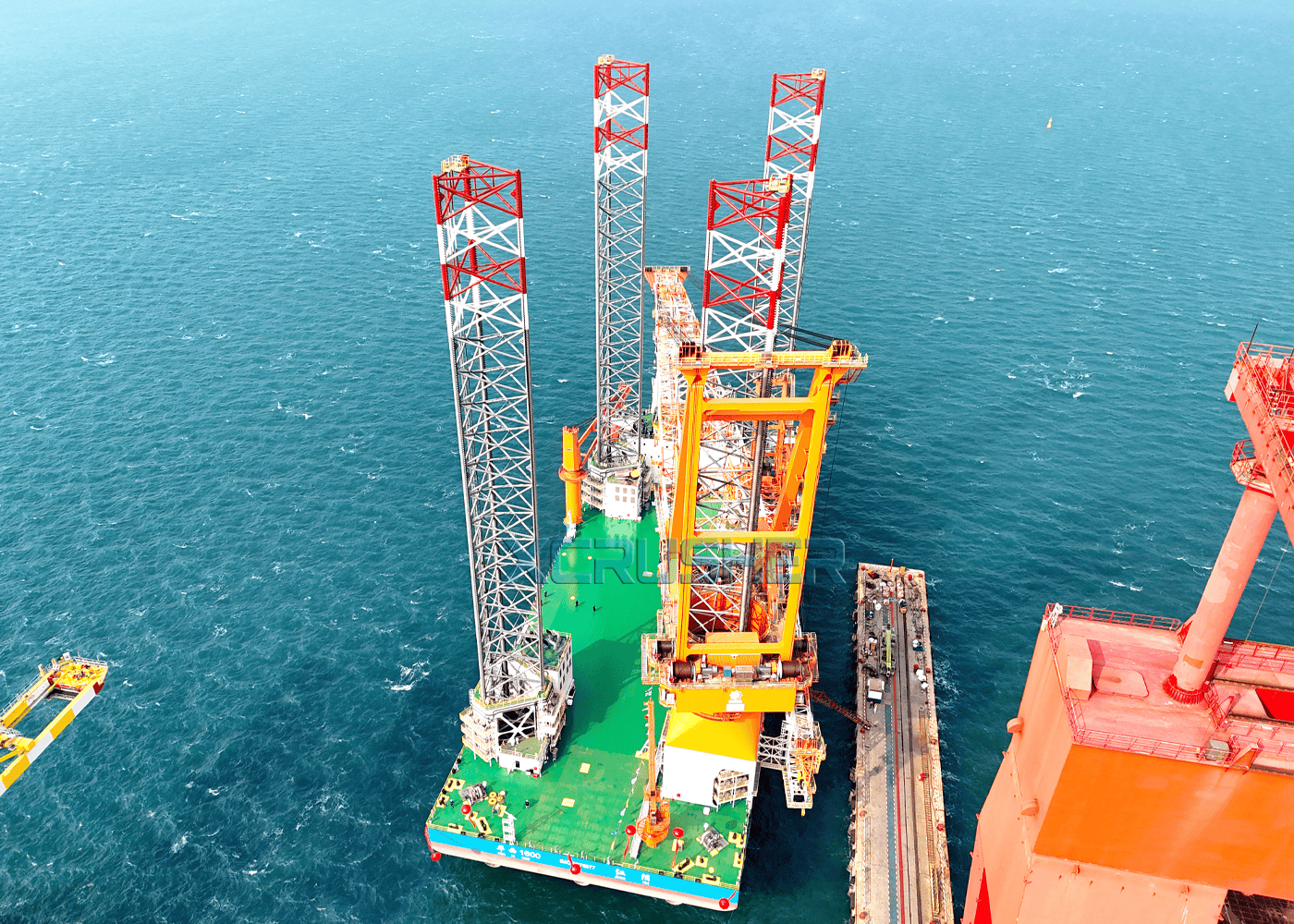

The wind turbine installation platform is primarily used for offshore wind farm turbine installation and offshore construction operations involving lifting and floating crane work. The platform is capable of carrying and installing mainstream offshore wind turbines of 6 to 8 MW and below. It supports lifting operations for offshore 8 MW wind power installations, as well as other marine construction tasks such as lifting, piling, hoisting, and transportation. The platform can perform installation of various foundation types including monopile foundations, jacket foundations, multi-pile cap foundations, and bucket foundations for offshore wind turbines. Additionally, it enables pre-assembly of wind turbine rotor blades on deck and offers repositioning capabilities within the operational water area. Key equipment on the platform includes large-scale wind turbine installation cranes and continuous hydraulic locking pin lifting systems. To date, the company has successfully designed, built, and delivered the country’s first 1200-ton self-propelled jack-up wind turbine installation platform.
image gallery
Specifications
| Parameter | Specification |
|---|---|
| Lifting Capacity | 1200 t |
| Overall Length | ~132.8 m |
| Length Between Perpendiculars | 103.8 m |
| Molded Beam | 41.0 m |
| Molded Depth | 8.2 m |
| Max. Operating Depth (incl. tide) | 50 m |
| Design Draft | ~5.2 m |
| Crane Operation Draft | ~5.5 m |
| Speed | ≥7.0 kn |
| Dynamic Positioning | DP-1 |
| Endurance | 20 days |
| Crew Capacity | 100 P |
| Number of Legs | 4 |
| Leg Length | 85 m |
